Android Rk3288 2G Face Recognition Thermometer Thermal Camera 8 Inch Lcd Screen

Basic Information
Place of Origin: Guangzhou,China
Brand Name: HUSHIDA
Certification: ISO9001 24001, CE, Rohs, FCC,3C
Model Number: AI800
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 10000units per month
Detail Information
Name: Measuring Temperature Equipment Version: Android Rk3288 2G
Equipment Size: 42.5 *16.9*12(cm) Operating Temperature: ﹣10 ℃ ~ 60 ℃
Face database: 10000
High Light:

infrared thermal camera

,

face recognition temperature measurement


Product Description

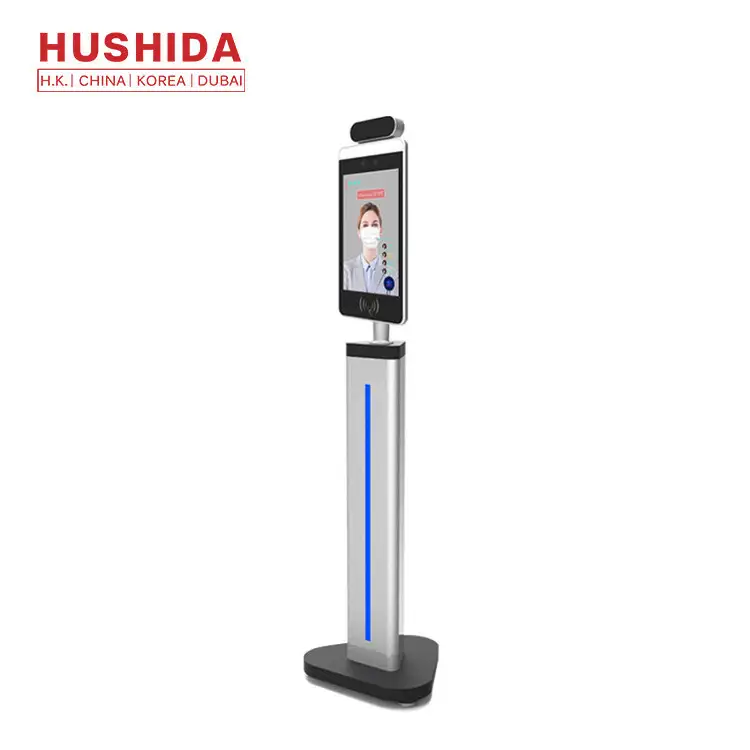

8 inch face recognition screening temperature infrared thermal camera

Product description

All of our Temperature Sensing Solutions are equipped with an infrared temperature sensor/detector and the system provides an alert if an individual is running a fever.The system uses an algorithm for fast detection temperature accuracy.



Download specification AI800 8inch AI Facial Detection Thermometer.pdf



Application scenarios
Applicable to office areas, hotels, office buildings, schools, shopping malls, shops, communities, public services and management projects that need to use face access control places.



Android Rk3288 2G Face Recognition Thermometer Thermal Camera 8 Inch Lcd Screen 0

Android Rk3288 2G Face Recognition Thermometer Thermal Camera 8 Inch Lcd Screen 1

Android Rk3288 2G Face Recognition Thermometer Thermal Camera 8 Inch Lcd Screen 2
Product advantages


a. Off-line working, not limited by server

b.Collection, detection, comparison and living judgement on one device

c .Support Wiegand protocol, can be linked with electronic door lock


Product specification

Product parameters
Product Name AI800 Face gate temperature measuring machine
Product Brand HUSHIDA
Product Model HSD-XXKB-22
Screen Size 8 inch lcd screen
Resolution 720*1280
Processor CPU RK3128 quad-core, RAM-A7, up to 1.3GHz
RAM DDR 1G
Built-in memory EMMC 8G
Sensor Infrared sensor 64 infrared sensors (also called pixels)
Sensitivity 4KV
Working temperature -40 ℃ ~ 85 ℃
Storage temperature -40 ℃ ~ 125 ℃
Interface Network module Support Ethernet, wireless (WIFI)
Audio Support 5W / 8R speakers, left and right channels, MIC interface
USB interface 1 channel USB OTG, 1 channel USB HOST standard A port
HDMI interface HDMI1.4 supports up to 1080P @ 60HZ output
Storage card TF card
Wired network interface 1 RJ45 Ethernet interface
General parameters Protection level IP65, certain outdoor dustproof and waterproof function
power supply DC12V (± 10%)
Operating temperature ﹣10 ℃ ~ 60 ℃
Storage temperature -20 ℃ ~ 60 ℃
Power consumption 13.5W (Max)
Installation method Wall mount
Equipment size 42.5 *16.9*12(cm)



 Certification

Android Rk3288 2G Face Recognition Thermometer Thermal Camera 8 Inch Lcd Screen 3
