Indoor Face Recognition Thermometer 10 Points Capactive Touch Dual Infrared Camera

Basic Information
Place of Origin: Guangdong
Brand Name: Hushida
Certification: 3C, CE, Rohs, FCC
Model Number: XXKB-19-03
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: carton with wooden case for outer packing
Payment Terms: T/T, Western Union
Supply Ability: 10,000 per month
Detail Information
Brightness: 300cd/㎡ Size: 10inch
Resolution: 1280× 800p Touch Type: 10 Points Capactive Touch
Application: Indoor Camera: Dual Infrared Camera
High Light:

infrared thermal camera

,

face recognition temperature measurement


Product Description

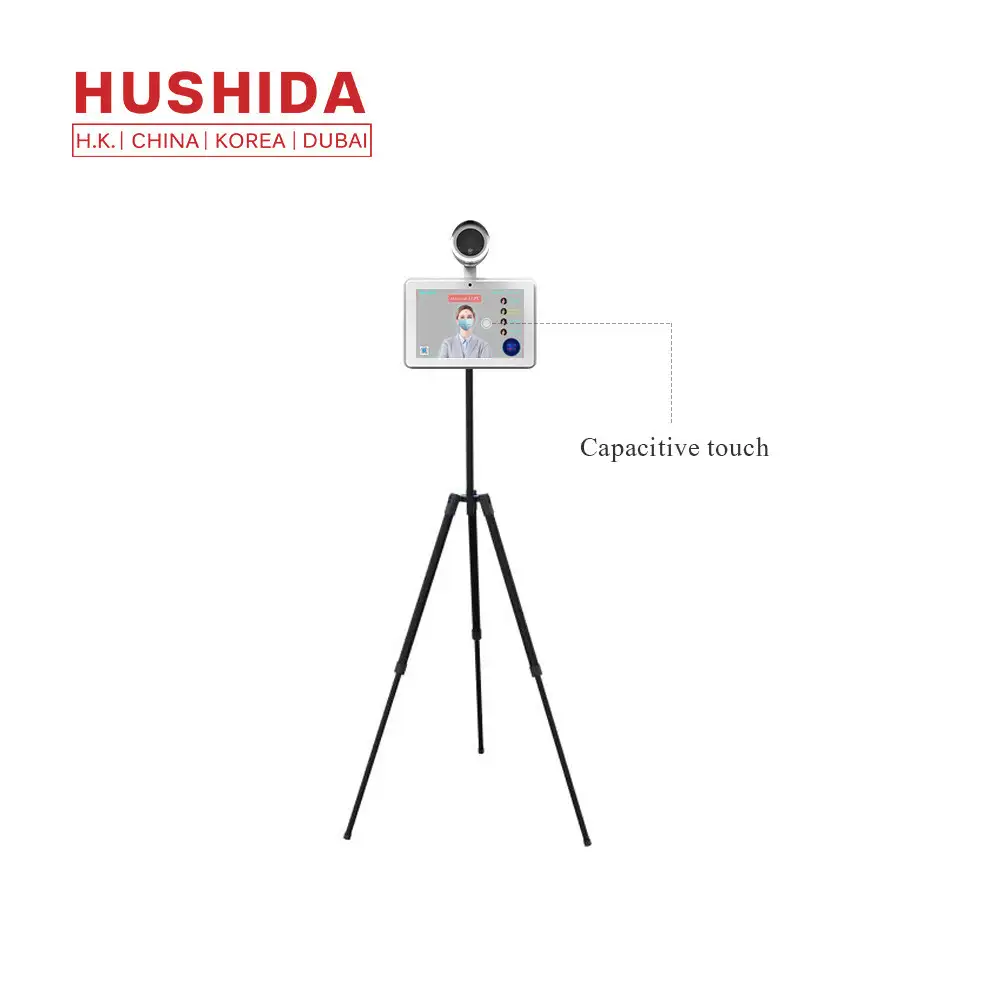

Indoor Face Recognition Thermometer 10 Points Capactive Touch Dual Infrared Camera

1. Product description

AI thermal imaging face temperature detection intelligent terminal (model YBAI-D4-2) is a face detection and temperature measurement product that integrates face contrast recognition heating imaging non-contact temperature measurement module. At this time, the surface temperature of the human body can be measured by thermal imaging. The entire face recognition measurement process is a non-contact experience, and it is accurate, reliable, and efficient without perception. When the temperature of the detected person exceeds a certain threshold, the terminal's signal light will issue an abnormal warning and give a voice reminder.



Download Specification,AI1000-10.1 inch AI Facial Detection Thermometer.p...



Indoor Face Recognition Thermometer 10 Points Capactive Touch Dual Infrared Camera 0

2. Application



Suitable for office areas, hotels, office buildings, schools, shopping malls, shops, communities, public services and management projects where face access is required.



3. Product Specifications

Face recognition integrated terminal
Product Model HSD-F1-101
Screen Panel Size 10.1inch,Full View,170°IPS LCD scren
Resolution 1280*800p
Screen Area 216.96(H)x135.6mm(V)
Display Mode Usual Black,IPS
Visual Angel 85/85/85/85
Contrast 800
Brightness 300cd/m2
screen ratio 16:10
System CPU RK3288,Quad-core,Cortex A17,1.8G
RAM 2GB
ROM 16GB
OS Android 5.1
Touch Type 10 points capactive
Network Wifi 802.11b/g/n
Bluetooth Bluetooth 4.0
Ethernet 100M/1000M network port
Port SD card SD card
USB USB host
Micro USB Micro USB OTG
USB USB For serial
RJ45 Ethernet Port(wuth POE functions)
POE IEEE802.3at/af
DC DC Power, 12V input
Headset 3.5mm Stereo headphone output+speaker
Media Play Video Format MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etc., The Max support reach to 4K video.
Aduio Format MP3/WMA/AAC etc.
Image format J peg
Temperature measurement module Thermal Imaging 0.2~0.5 meter
0.1°
Thermal imaging temperature measurement, deviation ± 0.3 ℃, ranging 80-120cm. Imaging pixels: 32 x 32

Others VESA 75x75mm
Speaker 2*1.5W
LED light bar LED light bar
Camera Front bulit-in 200W
Working Temperture 0--40 degree
Certifications CE/FCC/RoHS
OSD Language Chinese, English ect multi language OSD operation
adaptor

Power Adaptor12V/1.5A

Indoor Face Recognition Thermometer 10 Points Capactive Touch Dual Infrared Camera 1

Indoor Face Recognition Thermometer 10 Points Capactive Touch Dual Infrared Camera 2

Certifications

Indoor Face Recognition Thermometer 10 Points Capactive Touch Dual Infrared Camera 3
