10.1 Inch Thermal Scanner Camera 1280*800p

Basic Information
Place of Origin: Guangzhou,China
Brand Name: HUSHIDA
Certification: ISO9001 24001, CE, Rohs, FCC,3C
Model Number: AI1000
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7-10 working days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 10000units per month
Detail Information
Item: Thermal Imaging Camera Screen Ratio: 16:10
Display Mode: Usual Black,IPS Ethernet: 100M/1000M Network Port
Bluetooth: Bluetooth 4.0 Name: 10.1 Inch Thermal Scanner Camera
High Light:

infrared thermal camera


face recognition temperature measurement

Product Description

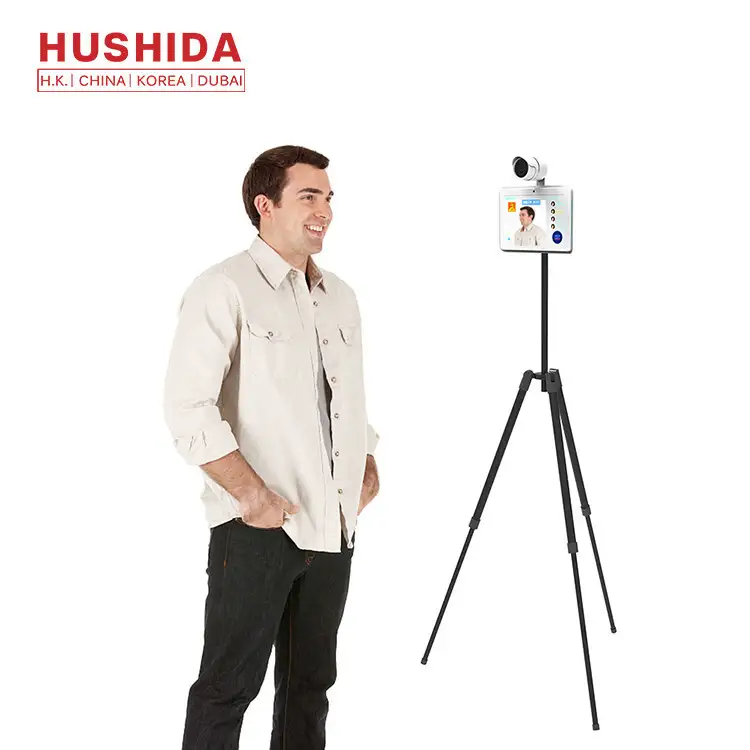

10.1 inch thermal imaging camera temperature screening equipment

Designed as an all-in-one solution for the purpose of ensuring safe working environments during a pandemic, this system provides protection to yourself, your employees, and your customers from potentially deadly infections by identifying individuals with elevated temperatures or fevers.Includes automatic audio alarming and records all alarms and images for easy searching.


Product Features
1.Off-line working, not limited by server

2. Excellent environmental adaptability, adapt to low light and strong backlight, support automatic face exposure

3. Rich hardware interface, integrated 100M Ethernet interface, audio interface, Wiegand interface, relay interface

4.Support 2D, 3D digital noise reduction

5.Support the secondary development of device-side application software


Download SpecificationAI1000-10.1 inch AI Facial Detection Thermometer.p...

10.1 Inch Thermal Scanner Camera 1280*800p 0

10.1 Inch Thermal Scanner Camera 1280*800p 1

Product Specifications

Face recognition integrated terminal
Product Model HSD-F1-101
Screen Panel Size 10.1inch,Full View,170°IPS LCD scren
Resolution 1280*800p
Screen Area 216.96(H)x135.6mm(V)
Display Mode Usual Black,IPS
Visual Angel 85/85/85/85
Contrast 800
Brightness 300cd/m2
screen ratio 16:10
System CPU RK3288,Quad-core,Cortex A17,1.8G
OS Android 8.1
Touch Type 10 points capactive
Network Wifi 802.11b/g/n
Bluetooth Bluetooth 4.0
Ethernet 100M/1000M network port
Port SD card SD card
USB USB host
Micro USB Micro USB OTG
USB USB For serial
RJ45 Ethernet Port(wuth POE functions)
POE IEEE802.3at/af
DC DC Power, 12V input
Headset 3.5mm Stereo headphone
Media Play Video Format MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etc.,
The Max support reach to 4K video.
Aduio Format MP3/WMA/AAC etc.
Image format Jpeg

10.1 Inch Thermal Scanner Camera 1280*800p 2


We provide AI-based analytics, which combined with a state-of-the-art thermal camera, enables continuous contact-less and non-invasive accurate temperature monitoring.

It can be used for preliminary screening in border checkpoints, airports, educational and government institutions, manufacturing warehouses, and hospitals.


Our Exhibition

We participate in every Canton Fair and Hong Kong exhibition as well as exhibitions in the industry.


10.1 Inch Thermal Scanner Camera 1280*800p 3 10.1 Inch Thermal Scanner Camera 1280*800p 4 10.1 Inch Thermal Scanner Camera 1280*800p 5
10.1 Inch Thermal Scanner Camera 1280*800p 6 10.1 Inch Thermal Scanner Camera 1280*800p 7 10.1 Inch Thermal Scanner Camera 1280*800p 8
