10.1 inch Face Recognition infrared thermometer Thermal Imager with touch

Basic Information
Place of Origin: Guangzhou, China
Brand Name: HUSHIDA
Certification: ISO9001 , 3C, CE, Rohs, FCC
Model Number: XXKB-19
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: carton with wooden case for outer packing
Delivery Time: 3-5working days
Payment Terms: T/T, Western Union
Supply Ability: 10,000 per month
Detail Information
Screen Size: 10.1inch Brightness: 300cd/㎡
Standard: CE/ROHS/FCC/ISO9001 Type: Floorstanding, Table Stand, Mounted
Application: Indoor Install: Floor Standing
Warranty: 1 Year
High Light:

facial recognition thermometer

,

infrared thermal camera


Product Description

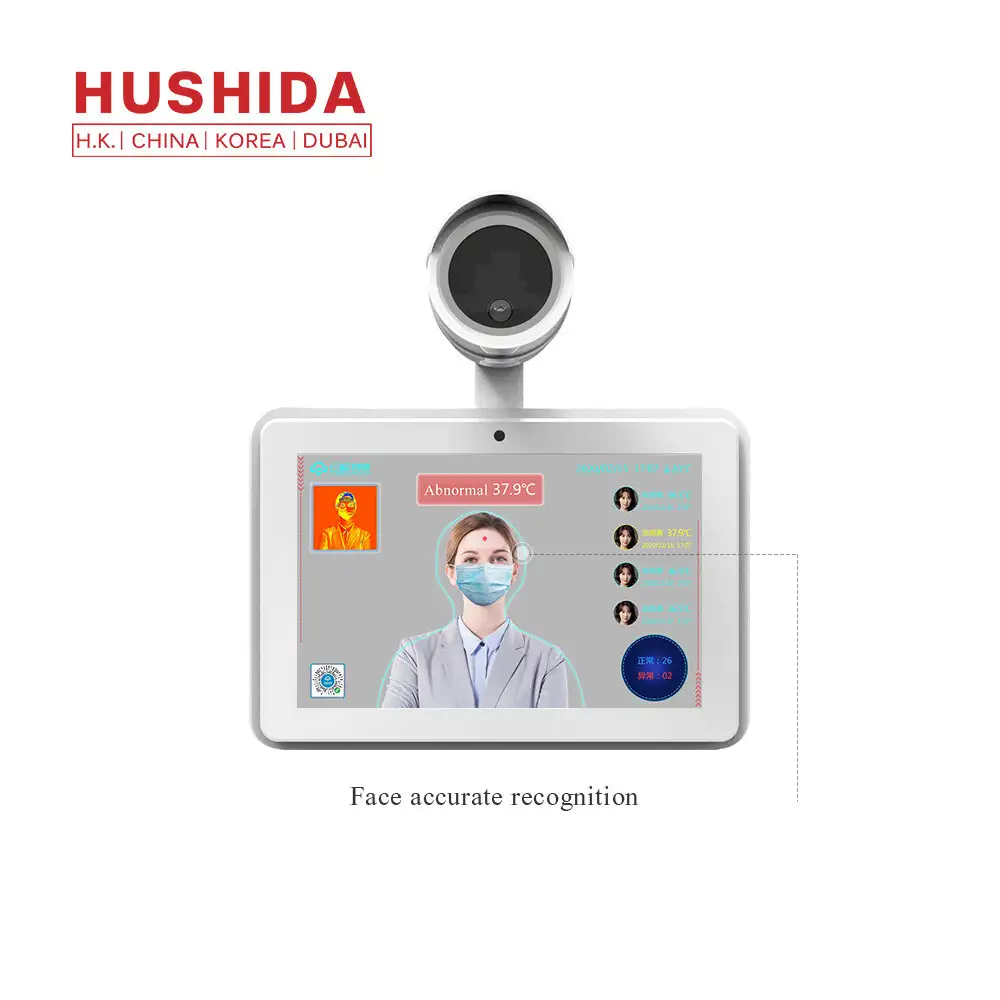

10.1 inch Face Recognition infrared thermometer Thermal Imager with touch

Product description





AI thermal imaging face temperature detection intelligent terminal (model YBAI-D4-2) is a face detection and temperature measurement product that integrates face contrast recognition heating imaging non-contact temperature measurement module. At this time, the surface temperature of the human body can be measured by thermal imaging. The entire face recognition measurement process is a non-contact experience, and it is accurate, reliable, and efficient without perception. When the temperature of the detected person exceeds a certain threshold, the terminal's signal light will issue an abnormal warning and give a voice reminder.

Download Specification,AI1000-10.1 inch AI Facial Detection Thermometer.p...

10.1 inch Face Recognition infrared thermometer Thermal Imager with touch 0

Product Features

1. Integrated design, easy to install, simple and reliable

2. Living body detection, anti-counterfeit photos, no space to drill.

3. Strong environmental adaptability, high stability, worry-free recognition during the day and night

4. Signal free breathing light, display light color according to human temperature information

5. Support relay switch signal, access control management, safety and peace of mind



10.1 inch Face Recognition infrared thermometer Thermal Imager with touch 1



10.1 inch Face Recognition infrared thermometer Thermal Imager with touch 2

Application

Suitable for office areas, hotels, office buildings, schools, shopping malls, shops, communities, public services and management projects where face access is required



Product Specifications

Face recognition integrated terminal
Product Model HSD-F1-101
Screen Panel Size 10.1inch,Full View,170°IPS LCD scren
Resolution 1280*800p
Screen Area 216.96(H)x135.6mm(V)
Display Mode Usual Black,IPS
Visual Angel 85/85/85/85
Contrast 800
Brightness 300cd/m2
screen ratio 16:10
System CPU RK3288,Quad-core,Cortex A17,1.8G
RAM 2GB
ROM 16GB
OS Android 5.1
Touch Type 10 points capactive
Network Wifi 802.11b/g/n
Bluetooth Bluetooth 4.0
Ethernet 100M/1000M network port
Port SD card SD card
USB USB host
Micro USB Micro USB OTG
USB USB For serial
RJ45 Ethernet Port(wuth POE functions)
POE IEEE802.3at/af
DC DC Power, 12V input
Headset 3.5mm Stereo headphone output+speaker
Media Play Video Format MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etc., The Max support reach to 4K video.
Aduio Format MP3/WMA/AAC etc.
Image format J peg
Temperature measurement module Thermal Imaging 0.2~0.5 meter
0.1°
Thermal imaging temperature measurement, deviation ± 0.3 ℃, ranging 80-120cm. Imaging pixels: 32 x 32

Others VESA 75x75mm
Speaker 2*1.5W
LED light bar LED light bar
Camera Front bulit-in 200W
Working Temperture 0--40 degree
Certifications CE/FCC/RoHS
OSD Language Chinese, English ect multi language OSD operation
adaptor Power Adaptor12V/1.5A



Packing & FAQ



Q1: What is your guarantee period?


A: Hu shi da provides 1 (one) year quality guarantee for the products from your purchase date,

except the human damage and force majeure factor. For a better maintenance, be sure that the

players are using under normal circumstances . Beyond the guarantee period machine,Hushida

will provide maintenance service and technical support (Hardware and other possible charges,

Hushida will not bear the responsibility)



Q2: How can I pay for the order?


A: Our payment terms: T/T, Western Union, Paypal, Escrow, Credit card

1) For sample order: 100% T/T or Western Union in advance, Paypal or Escrow is also acceptable.

2) For bulk order: 30%deposit T/T in advance, balance clear before pick up or shipment.



Q3: Why Choose Us?


Experience

"10 years focus on LCD displays,all products meet the standard of CE,FCC and Rohs."



Good Service

"Fast Smooth Communication before and after the sale,24 hour online service.Guaranteed quality policy."



Quality Assurace

”All LCD display addopting new a grade LCD panel that brands Samsung,LG,CHIMEI and AUO.100% Strict quality inspection before shipping."



Cost-effective Price

"Own Factory Based Costing,Brand quality with 10% low price."
