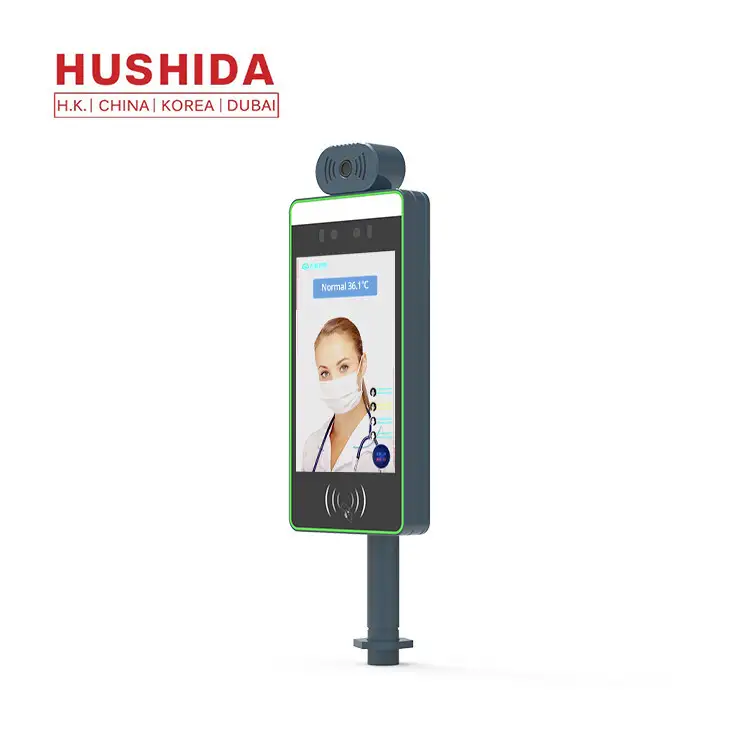

F3 Series 8 Inch Face Access Control Live Detection Face Recognition Terminal

Basic Information
Place of Origin: Guangzhou,China
Brand Name: HUSHIDA
Certification: ISO9001 24001, 3C, CE, Rohs, FCC
Model Number: AI-F2
Minimum Order Quantity: 1 units
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 1-10 days
Payment Terms: T/T, Western Union
Supply Ability: 10,000 units per month
Detail Information
Product Name: Face Intelligent Passing Equipment Size Of Panel: 8 Inch
Front Frame: Aluminum Alloy Front Frame + Tempered Glass Standard: CE/ROHS/FCC/ISO9001
Color: High-quality Cold-rolled Sheet Automatic Fill Light: Automatic Fill Light Switch, Face Can Be Clearly Identified At Night
Ergonomic Design: Artificial Camera, Identify Human Body Height Between 150cm-190cm Application: Indoor
High Light:

RK3288 face access control

,

ISO9001 Face Access Control

,

Live detection face recognition terminal


Product Description



F3 Series Face Access Control Live detection For Corporate Entrance



Product Description:



The face recognition integrated machine can effectively check the visitor and record it for easy review and review; non-manual authentication, fast face recognition, verification can be completed in one second; automatic registration of historical registration data can be used to shorten the registration time, Reducing work pressure; automatic display of historical registration data, eliminating the need for repeated inquiries, and reducing the difficulty of work; face recognition and access control all-in-one machines are widely applicable to face recognition scenarios in various areas such as gateways, subway security inspections, public security buildings, banks, and communities.



Product Features:



● Post-type industrial design, smooth lines, stable performance, support touch screen operation;

● Touch screen display, software interface and operation prompts, face frame, real-time detection of the largest face, convenient for user calibration;

● Use binocular 1.3 million high-definition wide-angle wide-dynamic camera to support anti-fake photos and videos; use deep learning algorithm to support 20,000 white list of faces, fast recognition speed, high accuracy rate;

● The device supports face, fingerprint, credit card, password, or a combination of each other. 1: N face comparison time is 1S;

● The device supports sending cards or face data through the TCP / IP network platform or USB, and supports stand-alone operation;

● The device supports the event linkage snapshot function and saves the snapshot picture, and the snapshot picture can be exported through the U disk;

● The device supports the data network upload function, which can upload the device comparison results and captured photos to the platform for saving in real time;

● The device supports management, query, and setting of device parameters after local login. Data can be imported and exported through a USB flash drive;

● The device supports external access control host or Wigan card reader through the international standard Wigan protocol (W26 W34);

● The safety gating module can be connected via RS485, and the safety gating module can be connected to the electric control lock. The door will not be opened if the host is maliciously damaged;

● The device can output a fixed voice prompt for the authentication result;

● With watchdog guard mechanism to ensure the stable operation of the equipment;



Specification 8 inches
Front frame Aluminum alloy front frame + tempered glass
Rear shell High-quality cold-rolled sheet
Color Black
Net weight 1kg (excluding post)
Gross weight 1.1kg (excluding column)
Overall size 248 (W) × 141 (H) × 2.9 (D) mm
Power input DC12V / 3A
Horn filter 2X3W4Ω
Overall power consumption 30W
Standby power consumption

1W





CPU Rockchip RK3288, quad-core ARM Cortex A17 1.8GHz
GPU Quad-core ARM Mali-T764 MP
RAM LPDDR3 1G ~ 4GB (optional) 2GB standard
Built-in storage capacity EMMC8GB / 16G / 32G optional (optional, standard 8GB)
Camera Binocular 130W3. Sensor size: 1 / 2.7 ”CMOS sensor





Application Of Face Access Control

The intelligent temperature measuring machine can be installed in the main entrances of crowded places such as enterprises,schools, hotels, shopping malls, office buildings, banks, government halls, etc., to monitor the temperature of employees, customers, and visitors in real time, effectively helping to prevent epidemics.
