| Place of Origin: | Guangdong |
|---|---|
| Brand Name: | Hushida |
| Certification: | 3C, CE, Rohs, FCC |
| Model Number: | HSD-XXKB-22 |
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | carton with wooden case for outer packing |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10,000 per month |
| Other Name: | 5 Inch Infrared Measuring Device | Screen Size: | 5 Inch |
|---|---|---|---|
| Operating Temperature: | Operating Temperature | Dimensions: | 188*92*26.2（mm） |
| General Parameters Protection Level Power Supply Operating Temperature Storage Temperature Power Con: | Wall Mount /standing Floor | ||
| High Light: | infrared thermal camera,face recognition temperature measurement |
||

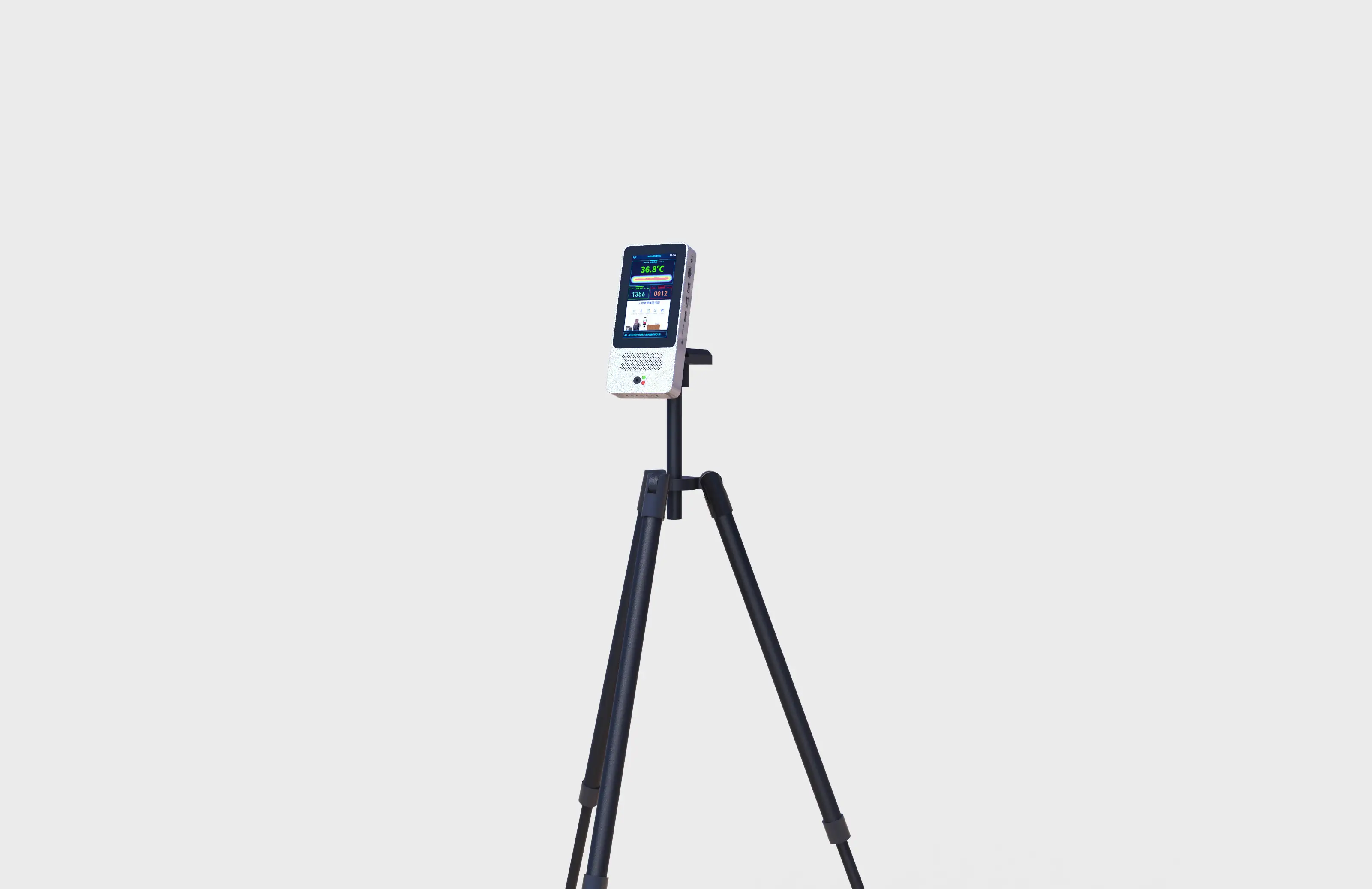

Thermal Camera Non Contact Thermometer Temperature Detection Device 5 Inch Screen
1,Production Descriptions
AI thermal imaging human body temperature measurement and detection intelligent terminal (model XXKB-22) is a temperature measurement product of non-contact temperature measurement module. When people pass through, the temperature of the human body surface is measured by thermal imaging.
The entire measurement process is a non-contact experience, and it is accurate, reliable, efficient and non-perceptive. When the detected person's body temperature exceeds a certain threshold, the signal light of the terminal will issue an abnormal warning and give a voice reminder.
Product design to follow the economic and practical, the design thought of security and stability, and provide a complete set of high quality, for wisdom through advanced facial recognition of infrared temperature testing management system, the system design using the mature technology, stable performance, simple fashion attendance temperature testing equipment stable and efficient attendance management, which can meet the needs of the current attendance and traffic management, and to screen out the abnormal body temperature.
2,Application scenarios
Applicable to office areas, hotels, office buildings, schools, shopping malls, shops, communities, public services and management projects that need to use face access control places.
Download Specification,AI500-5inch Infrared temperature measuring machine...
3,Product Details
3,Product Parameters
| Specification | ||
| Product Name | AI800 Face gate temperature measuring machine | |
| Product Brand | HUSHIDA | |
| Product Model | HSD-XXKB-22 | |
| Screen | Size | 5 inch lcd screen |
| Resolution | 720*1280 | |
| Processor | CPU | RK3128 quad-core, RAM-A7, up to 1.3GHz |
| RAM | DDR 1G | |
| Built-in memory | EMMC 8G | |
| Sensor | Infrared sensor | 64 infrared sensors (also called pixels) |
| Sensitivity | 4KV | |
| Working temperature | -40 ℃ ~ 85 ℃ | |
| Storage temperature | -40 ℃ ~ 125 ℃ | |
| Interface | Network module | Support Ethernet, wireless (WIFI) |
| Audio | Support 5W / 8R speakers, left and right channels, MIC interface | |
| USB interface | 1 channel USB OTG, 1 channel USB HOST standard A port | |
| HDMI interface | HDMI1.4 supports up to 1080P @ 60HZ output | |
| Storage card | TF card | |
| Wired network interface | 1 RJ45 Ethernet interface | |
| General parameters | Protection level | IP65, certain outdoor dustproof and waterproof function |
| power supply | DC12V (± 10%) | |
| Operating temperature | ﹣10 ℃ ~ 60 ℃ | |
| Storage temperature | -20 ℃ ~ 60 ℃ | |
| Power consumption | 13.5W (Max) | |
| Installation method | Wall mount/Stand flooring | |
| Equipment size | 188 * 92 * 26.2 (mm) | |
4,Certification
