Indoor Face Recognition Thermometer 5 Inch Infrared Temperature Measuring Instrument
| Place of Origin: | Guangdong |
|---|---|
| Brand Name: | Hushida |
| Certification: | 3C, CE, Rohs, FCC |
| Model Number: | HSD-XXKB-22 |
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | carton with wooden case for outer packing |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10,000 per month |
Every aspect of the product, such as performance, durability, usability, and so on, has been carefully tested and inspected during the production and before shipment.
| Other Name: | 5 Inch Measuring Temperature Instrumrnt | Power Consumption: | 13.5W（Max） |
|---|---|---|---|
| Dimensions: | 188*92*26.2（mm） | Resolution: | 720*1280 |
| Installation Method: | Wall Mount/stand Floor | Memory Card: | TF Card |
| High Light: | infrared thermal camera,face recognition temperature measurement |
||

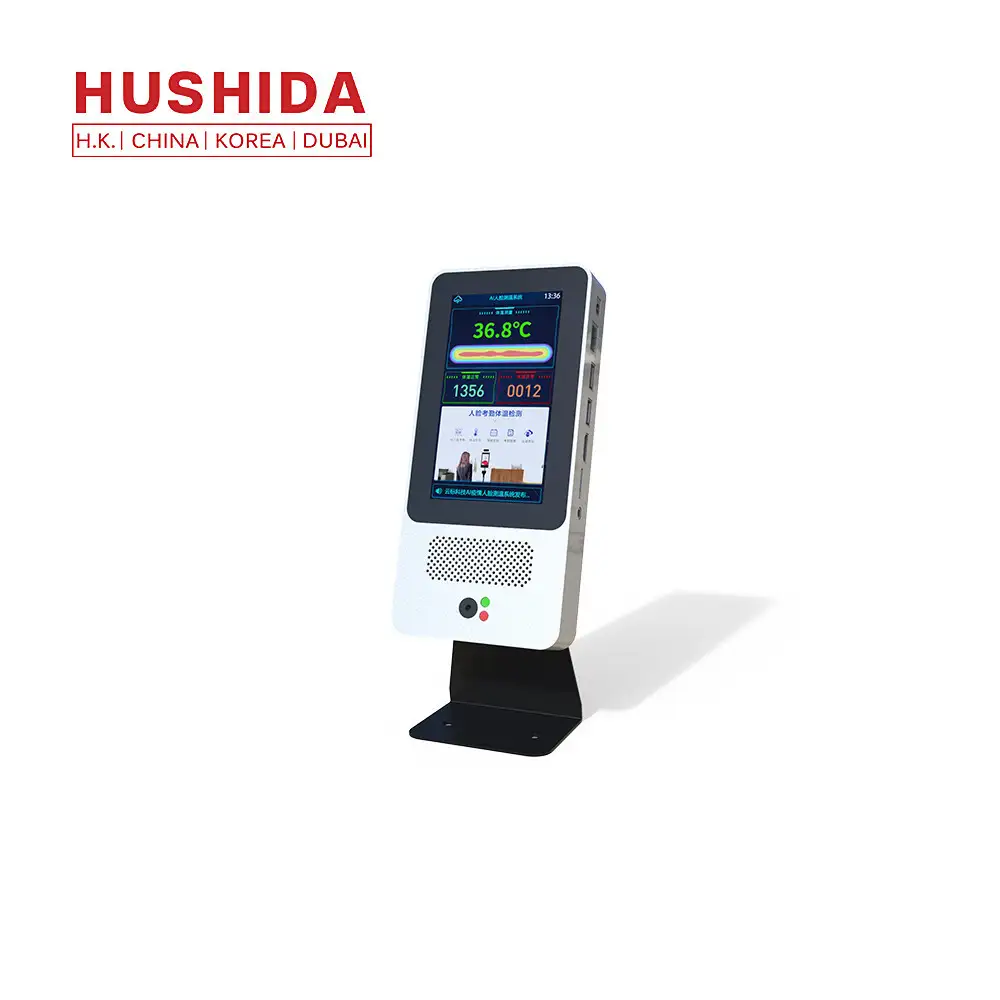

Indoor Face Recognition Thermometer 5 Inch Infrared Temperature Measuring Instrument
Production Descriptions
AI thermal imaging human body temperature measurement and detection intelligent terminal (model XXKB-22) is a temperature measurement product of non-contact temperature measurement module. When people pass through, the temperature of the human body surface is measured by thermal imaging. The entire measurement process is a non-contact experience, and it is accurate, reliable, efficient and non-perceptive. When the detected person's body temperature exceeds a certain threshold, the signal light of the terminal will issue an abnormal warning and give a voice reminder.
Download Specification,AI500-5inch Infrared temperature measuring machine...
Product Application
Applicable to office areas, hotels, office buildings, schools, shopping malls, shops, communities, public services and management projects that need to use face access control places.
Product Advantage
Automatic temperature measurement: Non-contact in vitro temperature measurement to reduce the risk of cross-contact
Intelligent Broadcast:Warning of abnormal body temperature
Monitoring of data management :After discovering the high temperature data, warn the management man in time
Product Details
Product parameters
| Product parameters | ||
| Product Name | AI500 Face gate temperature measuring machine | |
| Product Brand | HUSHIDA | |
| Product Model | AI500 | |
| Screen | Size | 5 inch lcd screen |
| Resolution | 720*1280 | |
| Processor | CPU | RK3128 quad-core, RAM-A7, up to 1.3GHz |
| RAM | DDR 1G | |
| Built-in memory | EMMC 8G | |
| Sensor | Infrared sensor | 64 infrared sensors (also called pixels) |
| Sensitivity | 4KV | |
| Working temperature | -40 ℃ ~ 85 ℃ | |
| Storage temperature | -40 ℃ ~ 125 ℃ | |
| Interface | Network module | Support Ethernet, wireless (WIFI) |
| Audio | Support 5W / 8R speakers, left and right channels, MIC interface | |
| USB interface | 1 channel USB OTG, 1 channel USB HOST standard A port | |
| HDMI interface | HDMI1.4 supports up to 1080P @ 60HZ output | |
| Storage card | TF card | |
| Wired network interface | 1 RJ45 Ethernet interface | |
| General parameters | Protection level | IP65, certain outdoor dustproof and waterproof function |
| power supply | DC12V (± 10%) | |
| Operating temperature | ﹣10 ℃ ~ 60 ℃ | |
| Storage temperature | -20 ℃ ~ 60 ℃ | |
| Power consumption | 13.5W (Max) | |
| Installation method | Wall mount | |
| Equipment size | 188 * 92 * 26.2 (mm) | |
Our Certification
The product has many competitive advantages and is widely used in the field.
