products

Free Cloud Software Real Time Alarm Thermal Camera Thermal Imager Body Temperature Measurement

Basic Information
Place of Origin: Guangzhou,China
Brand Name: HUSHIDA
Certification: CE, FCC,3C
Model Number: HUSHIDA-03
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 3-7 days works
Payment Terms: T/T, Western Union
Supply Ability: 10000units per month
Detail Information
Name: High Flux Temperature Device Size: 1739mm*1180mm*3650mm
Storage temperature: -30°C To 70°C Working humidity: 15%-85%
Automatic Exposure Control AEC: Support
High Light:

infrared thermal camera

,

face recognition temperature measurement


Product Description

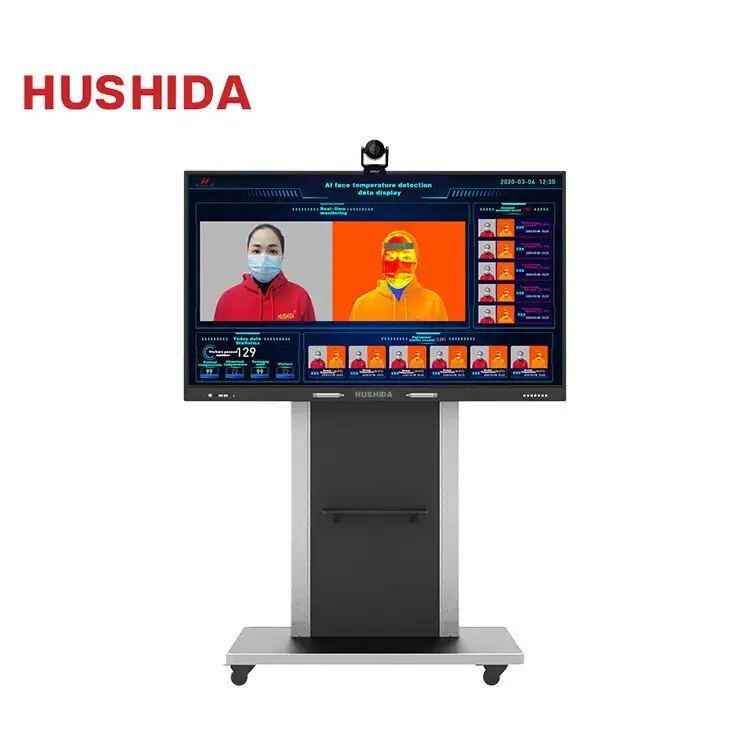

Software Real Time Alarm Thermal Camera Thermal Imager Body Temperature Measurement



1.Product Features



1. Face recognition thermal imaging, mobile thermal imaging and other methods to achieve a non-contact rapid temperature detection and management platform.



2. It can monitor the temperature of high-volume people at the same time, and can measure no less than 20 people at the same time. Real-time analysis of the over-temperature target shows the left traces and sound and light alarm.



3. The crowd in the face database (30,000) is automatically recognized, and the non-face database crowd captures the face in real time, and the specific face database crowd is captured and alarmed.



4. 24 hours uninterrupted work, real-time display of temperature and high temperature alarm times and has the function of classification and statistics.



Download Specification,AI 5000 Multiple face recognition thermometer.pdf

Free Cloud Software Real Time Alarm Thermal Camera Thermal Imager Body Temperature Measurement 0

Free Cloud Software Real Time Alarm Thermal Camera Thermal Imager Body Temperature Measurement 1

2,Product parameters



AI THERMAL IMAGING BODY THERMOMETER
Model HSD-RYS-4321-3025
Size 1739mm*1180mm*3650mm
Supported resolution and frame rate (MJPEG default) 1920*1080 30frame
Output image format MJPEG / YUV2(YUYV)
Interface Type USB2.0
Automatic Exposure Control AEC Support
Automatic white balance AEB Support
Automatic gain control AGC Support
Operating temperature 0°C to 40°C
storage temperature -30°C to 70°C
Working humidity 15%-85%
Temperature sensing module parameters Pixel pitch 480*360
Lens 90°
I/O USB
Ambient operating temperature 0℃~40℃
Black body Radiant heat source
Features
1. More portable and lighter. Higher accuracy.
2. Light weight the host weighs only 2 kg.
3. Temperature setting, simple operation. Rapid temperature rise and temperature control.
technical parameter
Model Name HSD-HTX1
temperature range 35℃-45℃
way to control PID automatic control
Temperature resolution 0.1℃
Radiation surface 78mm*78mm
Cavity emissivity 0.97/0.02
Temperature stability +(0.1~0.2)℃/30min
Temperature uniformity ± 0.2 ℃ (within 2/3 central area)
power supply 220V AC 50HZ
Host volume (length × width × height) 240mmX110Xmm150m
weight ≤2Kg
working environment temperature 0℃-30℃
humidity ≤60%RH
AI intelligent screening analysis platform
Features
1.Powerful analysis and processing capabilities
2.Centralized control of multiple terminal devices, visualized data presentation
3.Support system docking of attendance, access control, visitors
4.AI face recognition algorithm module embedding
5.Detection archive storage management
