| Place of Origin: | Guangzhou,China |
|---|---|
| Brand Name: | HUSHIDA |
| Certification: | CE, FCC，3C |
| Model Number: | HUSHIDA-01 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Packed in carton firstly,and then reinforced with wooden case for outer packing |
| Delivery Time: | 3-7 days works |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000units per month |
| Name: | Mini Temperature Box | Messure Distance: | 1-20cm |
|---|---|---|---|
| Unit Weight: | 0.6 Kg | Power Supply: | AC100V~240V 50/60Hz |
| Working Voltage: | 12 V | ||
| High Light: | infrared thermal camera,face recognition temperature measurement |
||

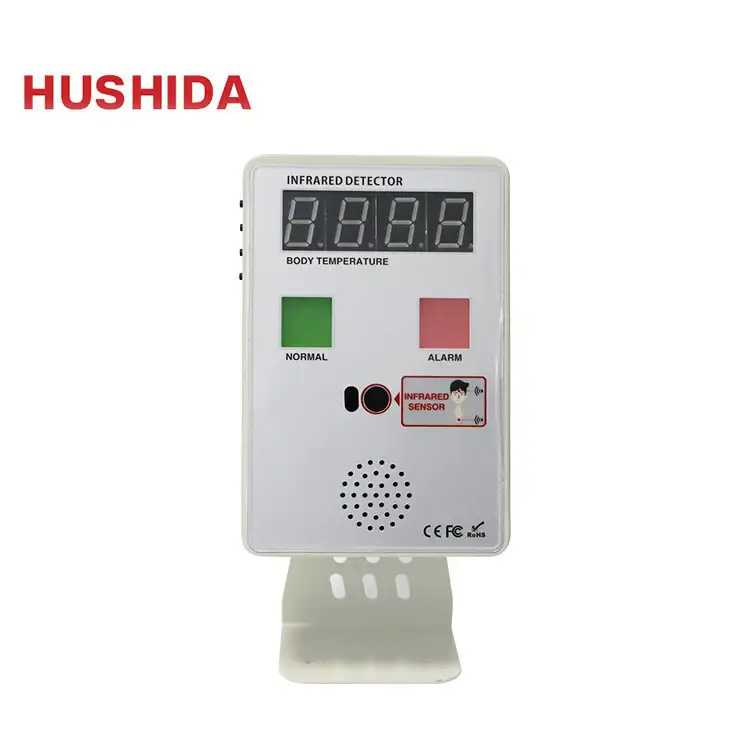

HUSHIDA Human body temperature measuring kiosk non contact walk through measuring temperature box
1.Product Features
"• Mini size, light weight, and easy to install;
• MELEXIS infrared sensor imported from Belgium is adopted, assured high precision and stable quality performance;
• Continuously measure the body temperature of people close with built in high-precision micro dynamic infrared body temperature monitor;
• Complete temperature measurement within 1 second to ensure traffic efficiency;
• The measurement distance is 1-20cm, no contact is required, and infection is avoided. The inspector does not need to be close to the inspected person, but monitor remotely to avoid the risk of contact or close.;
• Use STM highly intelligent start temperature measurement program to prevent false alarm caused by high temperature and direct sunlight;
2.Product parameters
| INTRODUCTION | |
|
1.Infrared Thermo Detector adopts infrared thermometry technology to measure the temperature of forehead, wrist or other body surface within a second when people walk close, and alarm if over the set temperature value to indicate the high body temperature for further inspection. enterprises, government agencies, stations, ports, exhibition halls, conference centers, concerts and other important places. It can control the entry of people with physical fever into public places and prevent the outbreak of infectious diseases. |
| TECHNICAL SPECIFICATION | |
| Measurement area | Forehead or wrist or other body surface |
| Messure distance | 1-20cm |
| Alarm | Sound and light |
| Counter |
Intelligent alarm counter showing the accumulated alarms |
| Measurement accuracy | ≤0.5℃ |
| Material | SPCC, PVC |
| Tamper-Proof |
Operation program is protected by password |
| Unit weight | About 0.6KG |
| Gross weight | About 1kg |
| Temperature measurement Speed | less than 1 Second |
| Temperature measurement accuracy | ± 0.3 |
| Working temperature | -10 ~ 40 ℃ |
| Dimension | 113 (L) * 164 (H) * 32 (D) mm |
| Packing size | 198 (L) * 170 (W) * 39 (H) mm |
| Options |
Battery, network with PC, turnstile, integrate camera, etc |
| Operating Environment | |
| Power supply | AC100V~240V 50/60Hz |
| Operating humidity | 95%, non-condensing |
| Working Voltage | 12V |
| Maximum power consumption | 8W |
| Operation temperature/Humidity | -10° C ~ 45° C / 0% ~ 98% |
| Storage Temperature/Humidity | -20° C ~ 55° C / 0% ~ 98% |
| Compliance | |
| International |
ISO9001 ISO14001 HSMS18001 |
