10.1 inch Face Access Control Thermal Imager human Body temperature Detection 10.1 inch Face Access Control Thermal Imag

Basic Information
Place of Origin: Guangdong
Brand Name: Hushida
Certification: 3C, CE, Rohs, FCC
Model Number: XXKB-19-01
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: carton with wooden case for outer packing
Payment Terms: T/T, Western Union
Supply Ability: 10,000 per month
Detail Information
Brightness: 300cd/㎡ Size: 10inch
Resolution: 1280× 800p Touch Type: 10 Points Capactive Touch
Application: Indoor Product Name: Face Recognition Access Control System Time Attendance
High Light:

infrared thermal camera

,

face recognition temperature measurement


Product Description

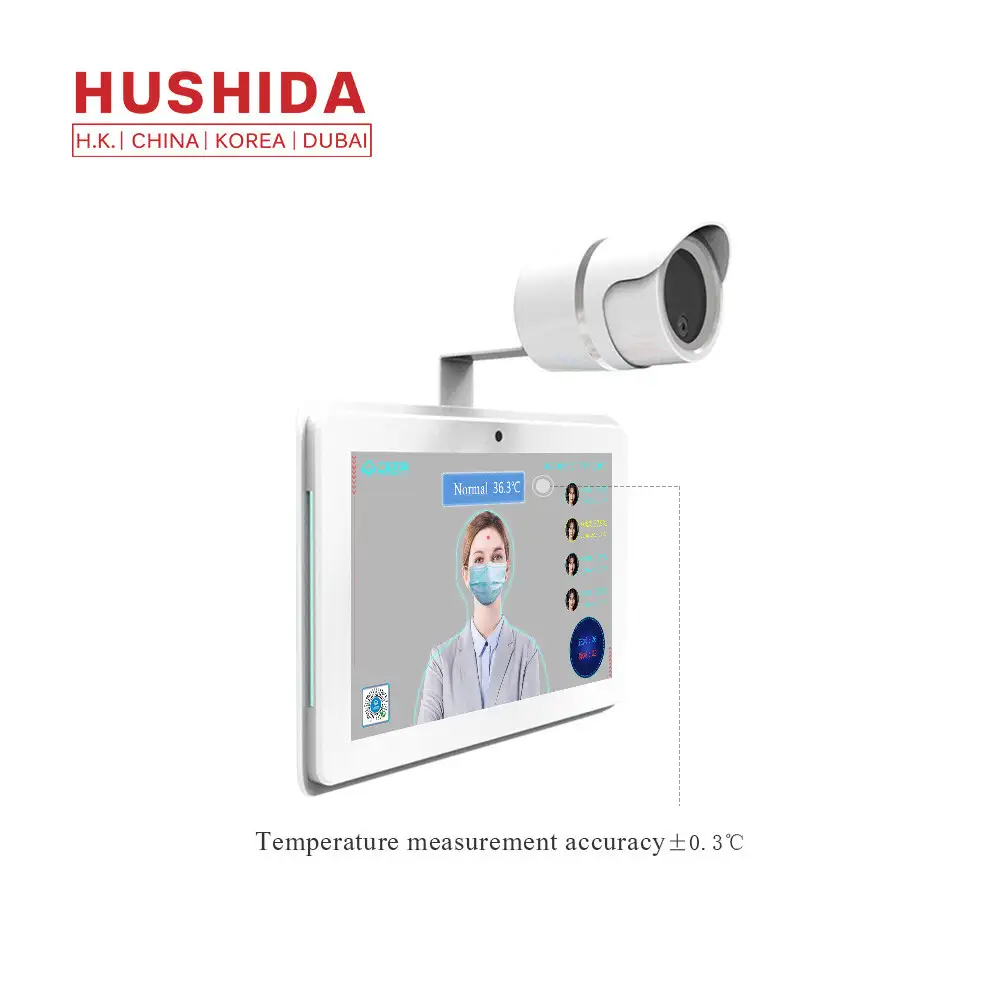

10.1 inch Face Access Control Thermal Imager human Body temperature Detection



Product description

AI thermal imaging face temperature detection intelligent terminal (model YBAI-D4-2) is a face detection and temperature measurement product that integrates face contrast recognition heating imaging non-contact temperature measurement module. At this time, the surface temperature of the human body can be measured by thermal imaging. The entire face recognition measurement process is a non-contact experience, and it is accurate, reliable, and efficient without perception. When the temperature of the detected person exceeds a certain threshold, the terminal's signal light will issue an abnormal warning and give a voice reminder.



Product design follows economical, practical, safe and stable design ideas, and provides a complete set of high-quality, advanced face recognition infrared temperature detection management system for intelligent traffic. The system design uses mature technology, stable performance, simple and stylish attendance temperature detection equipment and stability Efficient attendance management, which can meet the current attendance and traffic management needs, and can detect abnormal body temperature



Download Specification,AI1000-10.1 inch AI Facial Detection Thermometer.p...



Application

Suitable for office areas, hotels, office buildings, schools, shopping malls, shops, communities, public services and management projects where face access is required.



 Product Features

 1.Embedded face recognition detection and living body recognition algorithm based on deep learning, with a recognition speed of less than 300 seconds;

 2.Built-in thermal imaging temperature measurement sensor module, which can quickly measure the temperature of the human face (± 0.3) ℃);

 3.The host runs the Android 5.1 operating system and uses the latest face detection and recognition models to quickly capture faces, intelligent face quality judgment, and accurate face comparison and recognition;

 4.Using the latest technology to extract face features , To minimize the impact of the contrast of the face angle, light, expression and other adverse factors on the results.



 Product Specifications



Face recognition integrated terminal
Product Model HSD-AI1000
Screen Panel Size 10.1inch,Full View,170°IPS LCD scren
Resolution 1280*800p
Screen Area 216.96(H)x135.6mm(V)
Display Mode Usual Black,IPS
Visual Angel 85/85/85/85
Contrast 800
Brightness 300cd/m2
screen ratio 16:10
System CPU RK3288,Quad-core,Cortex A17,1.8G
RAM 2GB
ROM 16GB
OS Android 8.1
Touch Type 10 points capactive
Network Wifi 802.11b/g/n
Bluetooth Bluetooth 4.0
Ethernet 100M/1000M network port
Port SD card SD card
USB USB host
Micro USB Micro USB OTG
USB USB For serial
RJ45 Ethernet Port(wuth POE functions)
POE IEEE802.3at/af
DC DC Power, 12V input
Headset 3.5mm Stereo headphone
output+speaker
Media Play Video Format MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etc.,
The Max support reach to 4K video.
Aduio Format MP3/WMA/AAC etc.
Image format Jpeg
Temperature measurement module Thermal Imaging 0.2~0.5 meter
0.1°
Thermal imaging
temperature measurement,
deviation ± 0.3 ℃,
ranging 80-120cm.
Imaging pixels: 32 x 32
Others VESA 75x75mm
Speaker 2*1.5W
LED light bar LED light bar
Camera Front bulit-in 200W
Working Temperture 0--40 degree
Certifications CE/FCC/RoHS
Language Chinese, English ect Multi language OSD operation
adaptor Power Adaptor12V/1.5A
