None Touch Face Recognition Access System Temperature Measurement Detector 8 Inch

Basic Information
Place of Origin: Guangzhou, China
Brand Name: HUSHIDA
Certification: ISO9001 24001, 3C, CE, Rohs, FCC
Model Number: xxkb-22
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: carton with wooden case for outer packing
Delivery Time: 3-5working days
Payment Terms: T/T, Western Union
Supply Ability: 10,000 per month
Detail Information
Screen Size: 8” Brightness: 300cd/㎡
Standard: CE/ROHS/FCC/ISO9001 Color: White
Resolution: 1280× 800p Touch Type: None Type
Type: Floorstanding, Table Stand, Mounted Application: Indoor
High Light:

facial recognition thermometer


infrared thermal camera

Product Description

8 inch AI Face Recognition Thermometer Thermal Imaging Temperature Measurement Detector

1. Product description

AI thermal imaging face temperature detection intelligent terminal (model xxkb-22) is a face detection and temperature measurement product that integrates facial contrast recognition heating imaging contactless temperature measurement module. When the passenger conducts face recognition, the human body surface temperature can be measured by thermal imaging.The whole face recognition measurement process is non-contact experience, and is accurate, reliable, efficient and perception-free.If the temperature of the detected person exceeds a certain threshold, the signal light of the terminal will send out an abnormal warning and carry out a voice warning.

Product design to follow the economic and practical, the design thought of security and stability, and provide a complete set of high quality, for wisdom through advanced facial recognition of infrared temperature testing management system, the system design using the mature technology, stable performance, simple fashion attendance temperature testing equipment stable and efficient attendance management, which can meet the needs of the current attendance and traffic management, and to screen out the abnormal body temperature.


2. Application Scenarios

Applicable to office areas, hotels, office buildings, schools, shopping malls, shops, communities, public services and management projects that need to use face access control places.

Download Specification,AI800 8inch AI Facial Detection Thermometer.pdf

3. Product Advantages


Automatic temperature measurement

Non-contact in vitro temperature measurement to reduce the risk of cross-contact

Mask identification Check whether to wear masks to enhance safety precautions
Intelligent Broadcast Warning of abnormal body temperature + remind to wear a mask
Face recognition 10,000 database capacity, binocular in vivo detection
Real-name testing Proof of identity + indication of attribution
Monitoring of key populations Stranger warning + blacklist management
Monitoring of data management

After discovering the high temperature data,

warn the management man in time

None Touch Face Recognition Access System Temperature Measurement Detector 8 Inch 0


4. Product specification:


Product Model AI800
Camera Pixels Two mega pixels
Type Binocular wide dynamic camera
Measurement distance 50-150cm
White balance Automatic
Screen Size 8.0 inch IPS LCD screen
Resolution 800×1280
Processor CPU RK3288 Quad core,RAM 2G,main frequency is up to 1.8GHz
Local memory EMMC 8G
Accessories Fill light LED and infrared double fill lights
Embedded second generation id card reader Support type-a /B M1 card reading, support the second generation, three generations of id card reading, support to read A card B card UID
IC card reading module Support the MifareS50, MifareS70, FM11RF08 series of CARDS to obtain the physical card number in accordance with the ISO/IEC14443A agreement
Ports Network Module Support Ethernet, wireless (WIFI)
Audio Support for 2.5w /4R speakers
USB Ports USB OTG*1, USBHOST*1 standard port A
Serial Communication Interface RS232 com port*1
Relay output Door opening signal output*1
Wiggins interface Wigan 26/34 output*1,Wigan 26/34 input*1
Upgrade Support u-boot upgrade
Wired network interface RJ45 Ethernet seat*1
Function Face Detection Support for detection and tracking of multiple people at the same time
Face database capacity Maximum 20000
1:N Face recognition Support
1:1 Face Comparison Support
Stranger Detection Support
Recognition distance Settings Support
UI Interface settings Support
Remote upgrade Support
Ports of device Interfaces include device management, people/photo management, record query, etc
Usage Support public cloud deployment, private deployment, LAN use, used stand-alone
General parameter Protection grade IP65,Certain outdoor dustproof waterproof function
Power supply DC12V(±10%)
Operating temperature ﹣10℃~60℃
Storage temperature -20℃~60℃
Power consumption 13.5W(Max)
Installation method Gate access door bracket installation
Dimensions 260.18*132.88*61.7(mm)
Weight 1.5kg

None Touch Face Recognition Access System Temperature Measurement Detector 8 Inch 1

5. Installation Way

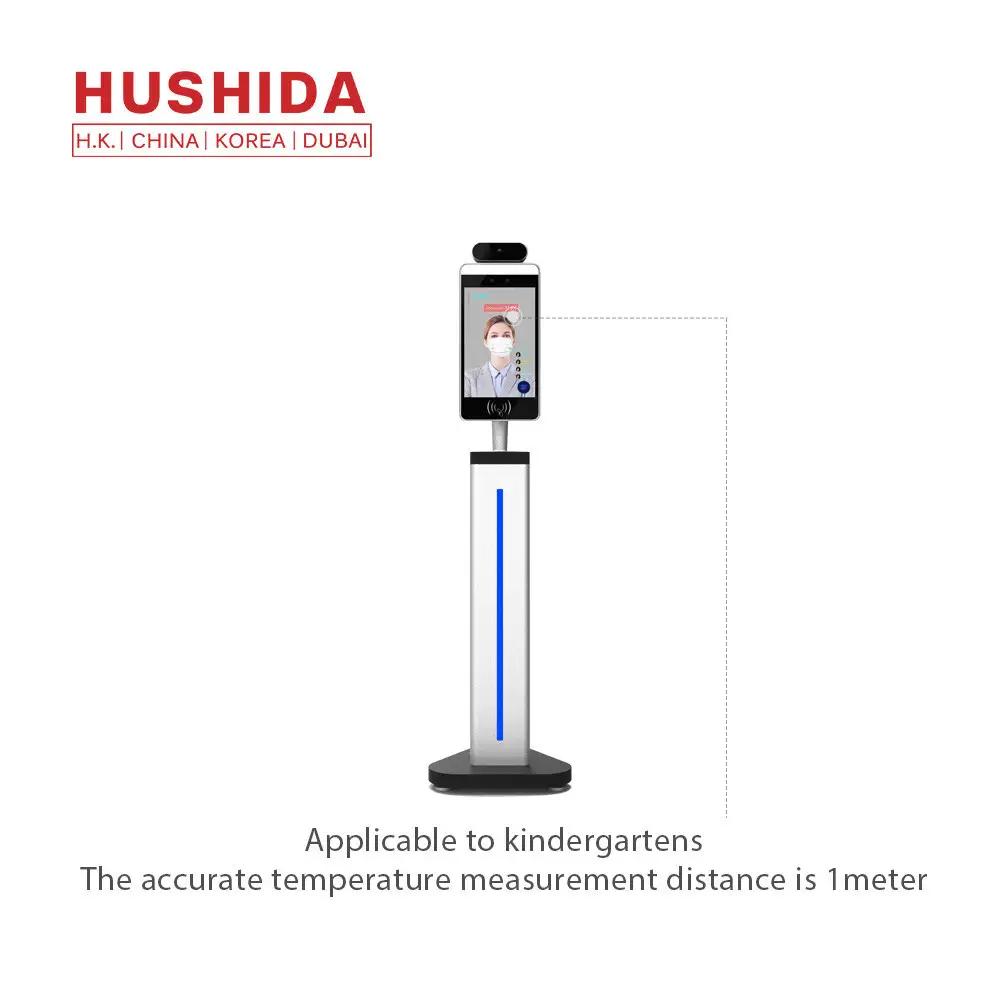

Table stand, floor stand, install in door access system.

None Touch Face Recognition Access System Temperature Measurement Detector 8 Inch 2


None Touch Face Recognition Access System Temperature Measurement Detector 8 Inch 3
