| Place of Origin: | Guangzhou,China |
|---|---|
| Brand Name: | HUSHIDA |
| Certification: | ISO9001 24001, CE, Rohs, FCC，3C |
| Model Number: | AI800 |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotiable |
| Packaging Details: | Packed in carton firstly,and then reinforced with wooden case for outer packing |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 10000units per month |
| Other Name: | Temperature Device | CPU: | Android Rk3288 Quad Core |
|---|---|---|---|
| RAM: | 2G | ROM: | 8G |
| Face database: | 10000 | ||
| High Light: | facial recognition thermometer,infrared thermal camera |
||

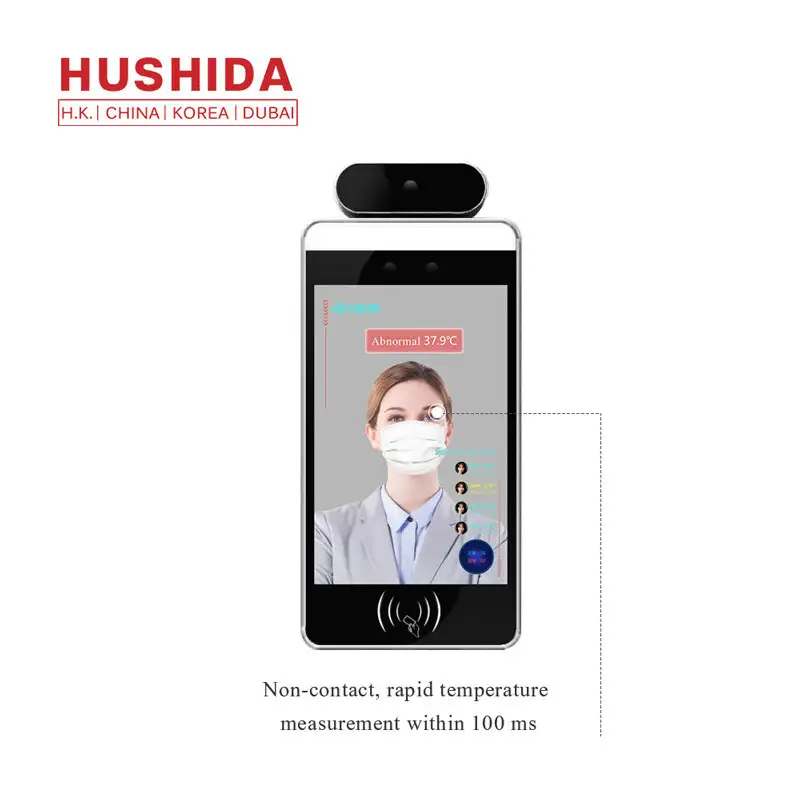

Hushida 8 inch AI face recognition Temperature Detection Thermal Imaging Thermometer
1, Product description
AI thermal imaging face temperature detection intelligent terminal (model xxkb-22) is a face detection and temperature measurement product that integrates facial contrast recognition heating imaging contactless temperature measurement module. When the passenger conducts face recognition, the human body surface temperature can be measured by thermal imaging.The whole face recognition measurement process is non-contact experience, and is accurate, reliable, efficient and perception-free.If the temperature of the detected person exceeds a certain threshold, the signal light of the terminal will send out an abnormal warning and carry out a voice warning.
Product design to follow the economic and practical, the design thought of security and stability, and provide a complete set of high quality, for wisdom through advanced facial recognition of infrared temperature testing management system, the system design using the mature technology, stable performance, simple fashion attendance temperature testing equipment stable and efficient attendance management, which can meet the needs of the current attendance and traffic management, and to screen out the abnormal body temperature.
Download specification AI800 8inch AI Facial Detection Thermometer.pdf
2, Application scenarios
Applicable to office areas, hotels, office buildings, schools, shopping malls, shops, communities, public services and management projects that need to use face access control places.
3,Product advantages
Face recognition:1000 database capacity,binocular in vivo detection
Real-name testing:Proof of identity + indication of attribution
Monitoring of key populations:Stranger warning + blacklist management
Monitoring of data management:After discovering the high temperature data, warn the management man in time
4,Product specification
| Product parameters | ||
| Product Name | AI800 Face gate temperature measuring machine | |
| Product Brand | HUSHIDA | |
| Product Model | HSD-XXKB-22 | |
| Screen | Size | 8 inch lcd screen |
| Resolution | 720*1280 | |
| Processor | CPU | RK3128 quad-core, RAM-A7, up to 1.3GHz |
| RAM | DDR 1G | |
| Built-in memory | EMMC 8G | |
| Sensor | Infrared sensor | 64 infrared sensors (also called pixels) |
| Sensitivity | 4KV | |
| Working temperature | -40 ℃ ~ 85 ℃ | |
| Storage temperature | -40 ℃ ~ 125 ℃ | |
| Interface | Network module | Support Ethernet, wireless (WIFI) |
| Audio | Support 5W / 8R speakers, left and right channels, MIC interface | |
| USB interface | 1 channel USB OTG, 1 channel USB HOST standard A port | |
| HDMI interface | HDMI1.4 supports up to 1080P @ 60HZ output | |
| Storage card | TF card | |
| Wired network interface | 1 RJ45 Ethernet interface | |
| General parameters | Protection level | IP65, certain outdoor dustproof and waterproof function |
| power supply | DC12V (± 10%) | |
| Operating temperature | ﹣10 ℃ ~ 60 ℃ | |
| Storage temperature | -20 ℃ ~ 60 ℃ | |
| Power consumption | 13.5W (Max) | |
| Installation method | Wall mount | |
| Equipment size | 42.5 *16.9*12(cm) | |
