Intelligent Biometric Face Recognition , Face Certificate Verifier Support Identity Card

Basic Information
Place of Origin: Guangzhou,China
Brand Name: HUSHIDA
Certification: ISO9001 24001, 3C, CE, Rohs, FCC
Model Number: AI-C1
Minimum Order Quantity: 1 units
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 1-10 days
Payment Terms: T/T, Western Union
Supply Ability: 10,000 units per month
Detail Information
Product Name: Face Intelligent Passing Machine Size Of Panel: 10.1 Inch
Front Frame: Aluminum Alloy Front Frame + Tempered Glass Standard: CE/ROHS/FCC/ISO9001
Color: High-quality Cold-rolled Sheet Automatic Fill Light: Live Detection, Automatic Fill Light Switch, Face Can Be Clearly Identified At Night
Ergonomic Design: Artificial Camera, Identify Human Body Height Between 150cm-190cm Application: Indoor
High Light:

intelligent passing machine

,

face recognition access control


Product Description

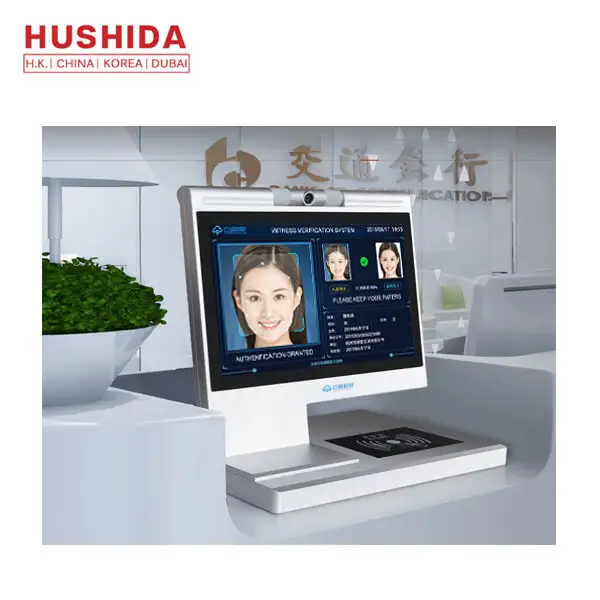

C1 Series Intelligent Face Certificate Verifier Support Identity Card



Product Overview:

The witness verification visitor is an innovative application that combines face recognition technology with identity card recognition technology. This product integrates on-site face collection, identity verification and other functions. From reading ID information to collecting face photos on the spot, performing comparisons, and obtaining results, the entire process is automated without the need to add peripheral hardware configuration, and the operation process does not require manual intervention. The collected information and comparison results can be uploaded to the big data collection platform in real time or pushed to the client.



The witness tester visitor system consists of a two-in-one ID card reader, high-definition camera, and witness verification software. The system uses the latest face recognition algorithm, combined with the latest second-generation reader application technology, and compares the photos collected on the scene with the photos on the ID card. The witness tester has a beautiful appearance, the whole machine is injection-molded, generous, and colors can be customized according to customer needs; easy maintenance, streamlined design of the whole machine, ergonomic principles, humanized operation interface, reasonable structure and easy maintenance.



The high-performance witness verification product launched by the visitor machine uses a face recognition algorithm. Compare the biometrics extracted on the spot with the personnel information stored in the system (or on the ID card). The main application scope of this series of products, including kindergarten pick-up and drop-off, visitor certification, driving school certification and other occasions.



Function Introduction:

10.1 inch touch screen operation

ID card identification, can quickly identify ID card information

HD face recognition verification, support visitors to take pictures

IC smart cards can be issued to securely manage visitors

Support fingerprint authentication or print visitor list

Ultra-high-definition display, which effectively captures face details, and has strong light adaptability

The witness verification visitor system is an innovative system that combines face recognition technology with identity card recognition technology, and achieves the purpose of matching the holder with the photo of the document.

Automatically capture faces-automatically capture the best portrait photos in the picture through the camera

Identification of multiple documents-can identify multiple documents with avatars, such as ID cards, driver's licenses, passports, etc.

Algorithmic accuracy-multiple algorithm recognition capabilities, face positioning, capture, tracking, collection, automatic collection of faces and photos in ID cards, and comparison device can output authentication results fixed voice prompt



Product specifications
Specification 10.1 inches
Front frame Aluminum alloy front frame + tempered glass
Rear shell Aluminum alloy
Color Silver
Overall size 263.2 (W) × 245 (H) × 159.9 (D) mm
Net weight 1KG
Gross weight 11.2KG
Power parameters DC12V / 3A
Horn filter 2X3W4Ω
Machine power consumption 30W
Standby power consumption 1W



Product parameters



Industrial Control Motherboard

CPU Rockchip RK3288, ARM Cortex-A17 quad-core 32-bit processor, clocked at 1.8GHz
GPU Mail-T764 GPU MP4 Quad-Core GPU
RAM DDR3 2G (up to 4G)
Built-in storage capacity eMMC 8GB (16G / 32G / 64G / 128G optional) TF Card expansion
The internet Support RJ45 Gigabit Ethernet port, Ethernet, 2.4G, WiFi, Bluetooth function
On-board backlight Support 3.3V / 5V / 12V optional
Audio 1 * Speaker output (2 * 6W 4R THD < 10%), 1 * Microphone input
Touch screen 1 * IC interface (support multi-point resistive touch, multi-point capacitive touch). Support USB multi-point infrared touch, multi-point capacitive touch, multi-point nano film touch, multi-point acoustic wave touch, multi-point optical touch, etc.
RTC Support external real-time clock power supply battery, timing switch
USB 5 * USB-2.0 HOST, 1 * USB2.0 OTG



         Camera

Hardware pixel Binocular 130W
Sensor resolution 1280 * 960
Recognition distance 50cm-150cm
Perspective 86 °
Aperture 2.5
Interface Type USB2.0
Focus method Fixed Focus AEC / Gain / White Balance: Auto

ID reader

Working frequency 13.56 MHz ± 7kHz
Communication method USB drive communication
Reading distance 0-3.5cm
Reading time <500 ms
